DGE 2080 series Wallpaper production equipment
1、DGFS-1 wallpater foaming experiment machine
Usage: The machine is the auxilary equipment matching to the wallpaper production line, which can conveniently and accurately simulated the production process and make the slurry scraping & coating and foaming experiment before mass production. All of which could realize the confirmation of the technical parameters( usch as coating thickness, foaming temperature, and the foaming time) in order to avoiding the mass production line sample wastage, saving waiting time, improving the product quality and lowering the production cost.
Technical characteristics：
Equipment type | DGFS-1 |
Temperature range(℃) | 0-230 |
Temperature controlling accuracy (℃) | ±1 |
Coating thickness controlling precision(mm) | ±0.01 |
Power(KW) | 10 |
Dimension of Machine(mm) | L1150×W1080×H1490 |
2、DGFS-1 Model Ink color instrument
Usage: for ink, ink printing color formula for accurate color, for the computer color provide accurate and consistent color samples.
Te
chnical characteristics：
Equipment type | DGCC-1 |
Working station area(mm) | 195×440 |
Max.Scraping ＆ coating area(mm) | 170×190 |
Scraping speed(m/min) | 0～6.8 |
Power supply(Hz) | Single phase AC 220V/50 |
Power(KW) | 0.3 |
Dimension of Machine(mm) | L400×W450×H200 |
3、DGSY-7090L verticat flat screen printing machine
Usage: used for wallpaper single surface printing proofing and sample making.
Technical characteristics：
Equipment type | DGSY-7090L |
Printing station area(mm) | 800×1000 |
Max.Printing area(mm) | 700×900 |
Max.net frame size(mm) | 850×1200 |
Thickness of printed materials(mm) | 0～50 |
Machine repeatability(mm) | ±0.05mm |
Working air pressure(Bar) | 0.5～0.6 |
Total Power(KW) | 3.0 |
Dimensions of the machine(mm) | L1550×W1350×H1700mm |
Dimension net weight(about) | 550 |

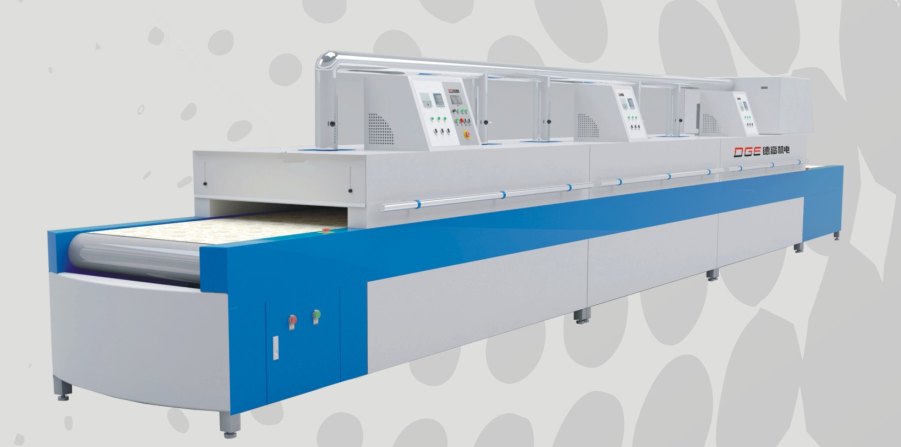

4、DGSH-750HD hot air type constant temperature foaming oven
Usage: used for single wallpaper drying and blowing.
Technical characteristics：
Equipment type | DGSH-750HD |
Conveyor belt width(mm) | 800 |
Output belt speed(m/min) | 1.8～15 |
Power(KW) | 30 |
Drying temperature（℃） | 25～250 |
Power supply | Single phase AC380V/50Hz |
Power per heating rod(KW) | 1 |
Total Power consumption(KW) | 30 |
Blowing machine variable frequency range(Hz) | 0～50 |
Dimension of Machine(mm) | L8000×W1000×H1440 |
-
